Correlation and Dependence

• Two random quantities can be uncorrelated but still be dependent but if they are independent they are necessarily uncorrelated.

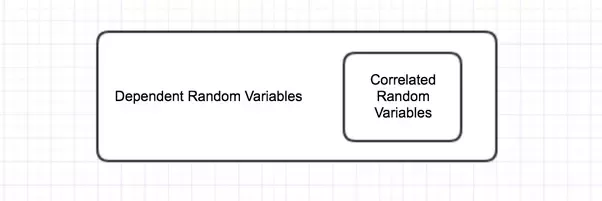

• Set of correlated random variables is a subset of set of dependent random variables.

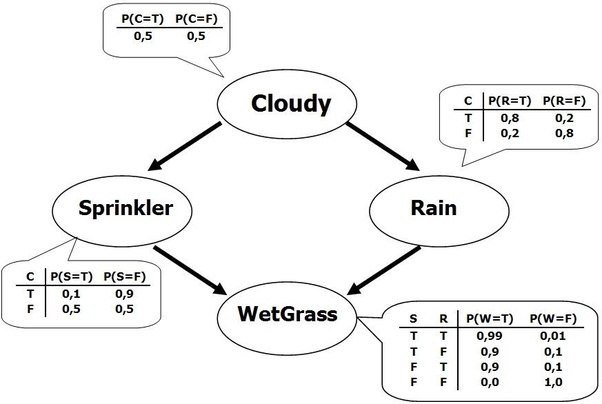

Intorduction to Bayesian Network

Intorduction to Bayesian Network

• A BNs is a directed acyclic graph in which each edge corresponds to a conditional dependency, and each node corresponds to a unique random variable.
• If an edge exists in the graph connecting random variables A and B, it means that P(B|A) is a factor in the joint probability distribution, so we must know P(B|A) for all values of B and A in order to conduct inference.

Reasons to use Bayesian Networks

• Encode the association between all variables (interactive view).

• Encode the association as Conditional Independence structure of variables.

• Generative as opposed to regression as discriminative.

• Casual effect, intervention, Counterfactual and what-if scenario.

• Expert system, Hybrid learning, or learn completly from data.

• BN can be extended into decision models by incorporating decision and utility nodes to automate decisions.

• Multiple outcomes and exposures in one BN model.

• Avoiding the collider bias (feature selection.).

• probability distribution with inference.

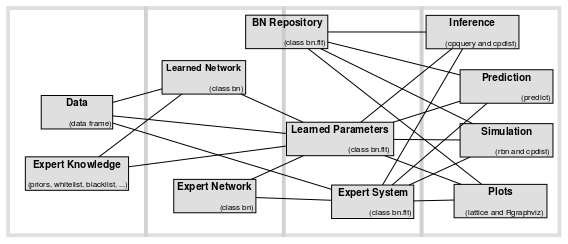

Steps of Building a Bayesian Network Analysis

• Learning the Network structure:
  • Data_driven approach (Score-based approach, Constraint based approach)
  • Expert knowledge approach
  • Hybrid approach (using white and blacklist as constraint)
• Learning the parameter
  • Maximum likelihood estimation
  • Bayesian Estimation
• Approximate Inference

Learning the Network Structure

Data Preprocessing

• Missing value imputation
• Variable transformation

Structure learned from data (Hill-Climbing)

chalenges

• Overfitting, Bayesian information Criteria

• Stability

• we can improve the quality of the structure learned from the data by averaging multiple DAGs

• One possible approach to that end is to apply bootstrap resampling.

Comparing tow different structure learning

Bootstap resampling

1. Repeat many times
   • sample a new data set from the original data using either parametric or nonparametric bootstrap;
   • learn the structure of the graphical model for each sample data.
2. Estimate the probability that each possible edge is present in the true network structure.

• This result in arc strength and arc direction.

• Arcs are considered significant if they appear in at least 85% of the networks, and in the direction that appears most frequently.

Averaging

Cumulative Distribution of the arcs strength

Cross-validation

##
##   k-fold cross-validation for Bayesian networks
##
##   target network structure:
##    [sei_class][jabstatus|sei_class][syk_class|sei_class]
##    [gender|sei_class:syk_class][trt_bp|jabstatus][duration|jabstatus]
##    [edu_credits|trt_bp:sei_class][smoking_status|duration][age|jabstatus:trt_bp]
##    [trt_sleep|jabstatus:gender:trt_bp][s_amount|duration]
##    [e_amount|smoking_status][trt_copd|trt_bp:trt_sleep:duration]
##    [startage|smoking_status][hereditery_asthma|trt_copd]
##    [trt_diabetes|gender:trt_bp:trt_copd:trt_sleep]
##    [asthma_tm|hereditery_asthma:trt_copd]
##    [hereditery_allergy|hereditery_asthma:asthma_tm]
##    [any_smp|hereditery_allergy:smoking_status:trt_copd:asthma_tm]
##    [herditery_pulldis|hereditery_asthma:any_smp:asthma_tm]
##    [DGF_work|any_smp:gender:syk_class]
##    [BMI|any_smp:gender:age:trt_bp:trt_diabetes]
##    [c_asthma|hereditery_asthma:any_smp:asthma_tm]
##    [only_symptoms|any_smp:asthma_tm][copd|any_smp:trt_copd]
##    [w_asthma|any_smp:asthma_tm][smoke_expwork|DGF_work:s_amount]
##    [her_dis|hereditery_asthma:herditery_pulldis]
##    [noalle_asthma|hereditery_allergy:c_asthma]
##    [alle_asthma|hereditery_allergy:c_asthma]
##    [smoke_exphome|any_smp:smoke_expwork:s_amount]
##   number of folds:                       10
##   loss function:
##                                    Classification Error (Posterior, cond. Gauss.)
##   training node:                         c_asthma
##   number of runs:                        5
##   average loss over the runs:            0.001960492
##   standard deviation of the loss:        2.410982e-07

Checking generated data

Original vs Simulated 1

Original vs Simulated 2

Original vs Simulated 3

Sampling the Condtional Probability Allergic Asthma

• P[alergic asthma|NonSmoker, age ∈ [44, 63], No treatment diabete, No dust and Gas Exposure, No Hereditary lung disease]
• We will sample the conditional probability 1000 times

Ploting the results

Sampling the Condtional Probability Asthma

• P[Asthma|NonSmoker, age ∈ [44, 63], No treatment diabete, No dust and Gas Exposure, No Hereditary lung disease, 2 years high school]
• We will sample the conditional probability 1000 times

Ploting the result

Sampling the Condtional Probability Asthma and gender

• P[ Asthma and being Male|Smoker, age ∈ [44, 63], No treatment diabete, No dust and Gas Exposure, No Hereditary lung disease, 2 years high school]
• Again, we will sample the conditional probability 1000 times

Plotting the resuts
